Detail

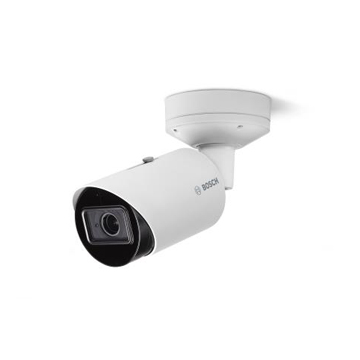

BOSCH NBE-3502-AL Bullet 2MP HDR 3.2-10mm Camera （DISCONTINUED）
F.01U.386.160 F.01U.360.358
NBE-3503-AL Bullet 5MP HDR 3.2-10mm IP66 IK10 IR
Fixed bullet camera; 5MP HDR; Essential Video Analytics;
3.2-10 mm lens; IP66 and IK10 rated; integrated IR illuminator
F.01U.386.161 F.01U.360.357
NBE-3502-AL-P Bullet 2MP HDR 3.2-10mm IP66 IK10 IR
Fixed bullet camera; 2MP HDR; Essential Video Analytics;
3.2-10 mm lens; IP66 and IK10 rated; integrated IR illuminator
F.01U.396.878
NBE-3503-AL-P Bullet 5MP HDR 3.2-10mm IP66 IK10 IR
Fixed bullet camera; 5MP HDR; Essential Video Analytics;
3.2-10 mm lens; IP66 and IK10 rated; integrated IR illuminator
F.01U.396.879
Accessories
NDA-3080-CND Conduit adapter 3000i outdoor camera M20
Conduit adapter for NDE-3000 outdoor camera
Order number NDA-3080-CND | F.01U.396.506
F.01U.379.489
NDA-3081-CND Conduit adapter 3000i outdoor camera M25
Conduit adapter for 3000i outdoor camera series
Order number NDA-3081-CND | F.01U.396.508
F.01U.382.429
NPD-5001-POE Midspan, 15W, single port, AC in
Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 1-port Weight: 200 g (0.44 lb)
Order number NPD-5001-POE | F.01U.305.288
NPD-5004-POE Midspan, 4 port x 15W, AC in
Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 4-ports Weight: 620 g (1.4 lb)
Order number NPD-5004-POE | F.01U.305.289
UPA-1220-50 Power supply, 220VAC 50Hz, 12VDC 1A out
Power supply for camera. 110-240 VAC, 50/60 Hz In; 12
VDC, 1 A Out; regulated.Input connector: 2-prong, European Europlug standard
(4 mm / 19 mm).
Order number UPA-1220-50 | F.01U.076.158
UPA-1220-60 Power supply, 120VAC 60Hz,12VDC 1A out
Power supply for camera. 100-240 VAC, 50/60 Hz In; 12
VDC, 1 A Out; regulated.
Input connector: 2-prong, North American standard (nonpolarized).
Order number UPA-1220-60 | F.01U.076.155
NDA-U-PMAS Pole mount adapter small Pole mount adapter small
Universal pole mount adapter, white; small.
Order number NDA-U-PMAS | F.01U.324.943
Fully configurable H.265 multi-streaming
1080p and 5MP resolutions
Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
Easy to install with zoom/focus lens
Built-in IR illuminator with 30 m (98 ft) viewing distance
Key Specifications
Built-in IR (ft) 98 ft
Built-in IR (m) 30 m
Field of View wide (°) 33 – 104 °
Frame rate (fps) 25 – 30 fps
Impact protection (EN 50102) IK10
IP rating IP66
Lens focal length (mm) 3.20-10 mm
Minimum illumination in color (lx) 0.06 lx
Minimum illumination in monochrome (lx) 0.02 lx
Operating temperature (°C) -30 – 50 °C
Operating temperature (°F) -22 – 122 °F
Resolution 1280 x 1024
Sensor type 1/2.8 inch CMOS
Video compression H.264 (ISO/IEC 14496-10)
