Brand：AXIS
Model：AXIS Q1656-BE

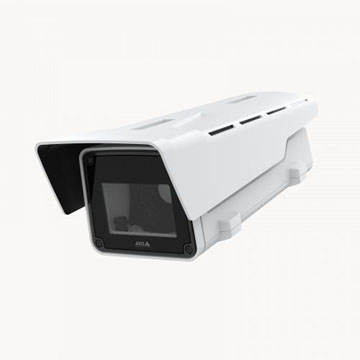

AXIS Q1656-BE Box Camera
02168-031
Outdoor barebone model in 4 MP
Exceptional images with 1/1.8” sensor
Support for analytics with deep learning
Built-in cybersecurity features
Support for i-CS lens
Ready to customize for specific needs
Technical specifications
DATASHEET (PDF)
Models: AXIS Q1656-BE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Property description Property value
Focal length –
Horizontal field of view –
Vertical field of view –
Lens mount CS
Replaceable lens Yes
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 4
Wireless –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) 25.5 W
Power (average) 11.2 W
DC input voltage 10-28 V
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
AI-based object detection and classification
AXIS Speed Monitor
Visualize radar data and get actionable insights
AXIS Video Motion Detection
Edge storage
AXIS Surveillance Card 1 TB
High endurance microSDXC? cardRecommended for this product
AXIS Surveillance Card 128 GB
High endurance microSDXC? cardRecommended for this product
AXIS Surveillance Card 256 GB
High endurance micro SDXC? cardRecommended for this product
AXIS Surveillance Card 512 GB
High endurance microSDXC? cardRecommended for this product
AXIS Surveillance Card 64 GB
High endurance microSDXC? cardRecommended for this product
Housings & cabinets
AXIS T98A16-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installationRequires additional accessoryRecommended for this product
AXIS T98A16-VE Surveillance Cabinet
Robust cabinet for easy installation of critical system equipmentRequires additional accessoryRecommended for this product
Illuminators
AXIS TQ1902-E IR Illuminator Kit
Power-efficient IR and White LEDs for surveillance at nightRecommended for this product
Lenses
Lens CS 4-10 mm F0.9 P-Iris
Extreme light sensitivity with precise iris controlRecommended for this product
Lens i-CS 1/1.8" 3.9-10 mm F1.5
Remote zoom and focusRecommended for this product
Lens i-CS 9-50 mm F1.5 8 MP
Remote zoom and focusRecommended for this product
Media converters
AXIS T8604 Media Converter Switch
Converts Ethernet to fiber 12 V DCRecommended for this product
AXIS T8606 Media Converter Switch 24 V DC
Converts Ethernet to fiber 24 V DCRecommended for this product
AXIS T98A16-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installationRequires additional accessoryRecommended for this product
Microphones
AXIS T8351 Mk II Microphone 3.5 mm
High-performance, low noise analog microphone for superior audioRecommended for this product
AXIS T8353A Microphone 3.5 mm
For professional audio surveillanceRecommended for this product
AXIS T8355 Digital Microphone 3.5 mm
Digital microphone with lossless interface for superior audioRecommended for this product
AXIS TU1001-VE Microphone
A robust outdoor-ready microphoneRequires additional accessoryRecommended for this product
Mounts
AXIS T91B47 Pole Mount
For different pole diametersRequires additional accessoryRecommended for this product
AXIS T94Q01F Ceiling-and-Column Mount
For many installation scenariosRecommended for this product
AXIS T94R01B Corner Bracket
For outdoor and indoor installationsRequires additional accessoryRecommended for this product
AXIS T94V01C Dual Camera Mount
Back-to-back camera installation made easyRequires additional accessoryRecommended for this product
AXIS TQ1501-E Crane and Traffic Mount
Fewer vibrations and more stabilityRecommended for this product
AXIS TQ1601-E Conduit Back Box
Aluminum conduit back box for increased mounting possibilitiesRequires additional accessoryRecommended for this product
Positioning units
AXIS T99A12 Positioning Unit 24 V AC/DC
Ultra-smooth and high accuracy absolute positioningRecommended for this product
Power
AXIS 30 W Midspan
For indoor use, 240 V ACRecommended for this product
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surgesRecommended for this product
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosureRecommended for this product
Switches
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switchRecommended for this product
AXIS T8508 PoE+ Network Switch
port switch for efficient network managementRecommended for this product
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network managementRecommended for this product
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network managementRecommended for this product
Tools & extras
AXIS Bird Control Spike
Keep your outdoor network cameras cleanRecommended for this product
AXIS T8415 Wireless Installation Tool
Simplicity in your handRecommended for this product
Weathershields
AXIS P13 Weathershield Extension A
Designed for extreme weatherRecommended for this product
