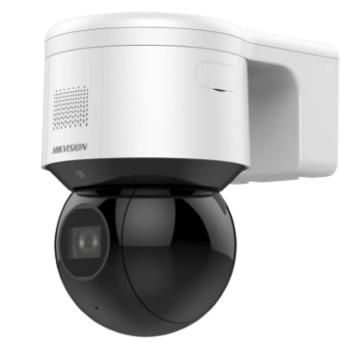

DS-2DE3A404IWG-E 4 MP 4x Zoom IR Mini PT Dome Network Camera
High quality imaging with 4 MP resolution
Focuses on human and vehicle targets classification based on deep learning
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 50 m IR range ensures safety at night
Support audio visual alarm
DS-2DE3A404IWG-E/W
4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera
DS-2DE3A400BW-DE(F1)(T5)
3-inch 4 MP ColorVu Mini PT Dome Network Camera
DS-2DE3A400BW-DE/W(F1)(T5)
3-inch 4 MP ColorVu Wi-Fi Mini PT Dome Network Camera
DS-2DE3A404IW-DE(S6)
3-inch 4 MP 4x Zoom IR Mini PT Dome Network Camera
DS-2DE3A404IW-DE/W(S6)
3-inch 4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera
-
Camera
-
Image Sensor1/2.8" progressive scan CMOS
-
Max. Resolution2560 × 1440
-
Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
-
Shutter Speed1 to 1/30,000 s
-
Day & NightIR cut filter
-
Zoom4 × optical, 16 × digital
-
Lens
-
Focal Length2.8 to 12 mm
-
FOV
Horizontal field of view: 96.7° to 31.6° (wide-tele)
Vertical field of view: 51.1° to 17.7° (wide-tele)
Diagonal field of view: 115.1° to 36.3° (wide-tele)
-
FocusAuto, semi-auto, manual
-
ApertureMax. F1.5
-
Zoom SpeedApprox. 2 s (optical lens, wide-tele)
-
Illuminator
-
Supplement Light RangeIR distance: up to 50 m, white light distance: up to 6m
-
Smart Supplement LightYes
-
PTZ
-
Movement Range (Pan)0° to 350°
-
Movement Range (Tilt)0° to 90°
-
Pan SpeedConfigurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
-
Tilt SpeedConfigurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
-
Proportional PanYes
-
Presets300
-
Preset FreezingYes
-
Patrol Scan8 patrols, up to 32 presets for each patrol
-
Park ActionPreset,Patrol Scan
-
3D PositioningYes
-
PTZ Status DisplayYes
-
Scheduled TaskPreset,Patrol Scan,dome reboot, dome adjust, aux output
-
Power-Off MemoryYes
-
Video
-
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
-
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
-
Video Bit Rate32 Kbps to 16 Mbps
-
H.264 TypeBaseline profile/main profile/high profile
-
H.265 TypeMain profile
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region Of Interest (ROI)8 fixed regions for each stream
-
Audio
-
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
-
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
-
Network
-
ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
-
Simultaneous Live ViewUp to 20 channels
-
APIOpen Network Video Interface, ISAPI, SDK, ISUP
-
User/HostUp to 32 users. 3 user levels, administrator, operator and user
-
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
-
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
-
Client
iVMS-4200, HikCentral, Hik-Connect
*Wi-Fi connection with Hik-Connect directly is not possible.
-
Web BrowserIE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
-
-
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
-
Wide Dynamic Range (WDR)120 dB
-
DefogDigital defog
-
Image EnhancementBLC, HLC, 3D DNR
-
Privacy Mask24 programmable polygon privacy masks, mask color configurable
-
Regional FocusYes
-
Regional ExposureYes
-
Interface
-
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
-
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
-
Built-In Microphone1 built-in microphone
-
Built-In Speaker1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
-
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
-
Alarm1 input, 1 output
-
Power Output12 VDC, max. 60 mA
-
Event
-
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
-
Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
-
Alarm LinkagePreset, Patrol Scan，Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning，F(xiàn)lashing Alarm
-
Deep Learning Function
-
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
-
General
-
Power
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 14 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
-
Dimension179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.17")
-
WeightApprox. 1.125 kg (2.48 lb.)
-
MaterialADC12 + PC
-
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
-
Approval
-
ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
