Model:13VG550ASII
lens:5-50mm

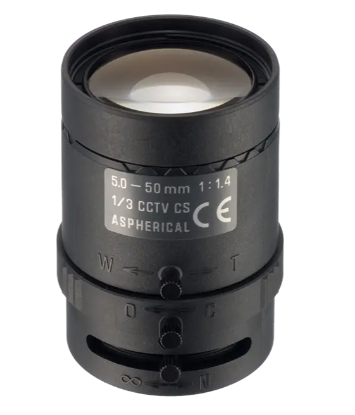

13VG550ASII Network Surveillance Camera Lenses
Tele Type
Imager Size 1/3"
Focal Length 5-50mm
Aperture Range F/1.4-360
Iris DC Auto-Iris
Model No. 13VG550AS II
Imager Size 1/3"
Mount Type CS
Focal Length 5 - 50mm
Aperture Range F/1.4 - 360
Field of View Angle
(Horizontal x Vertical) 1/3" Wide 53.6° x 40.3°
Tele 5.6° x 4.2°
1/4" Wide 40.3° x 30.1°
Tele 4.2° x 3.1°
Focusing Range 1.0m - ∞
Operation Focus Manual w/lock
Zoom Manual w/lock
Iris DC Auto Iris
Filter Size -
Back Focal Distance Wide : 10.05( in air )
Tele: 11.81mm( in air )
Wave Length Visible Light

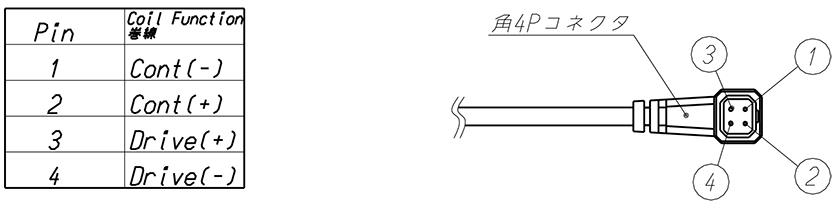

Operating Voltage OPEN : 4.0V
CLOSE : 0.7V
Weight 84g 士 4g
Operating Temperature -20°C - +60°C
