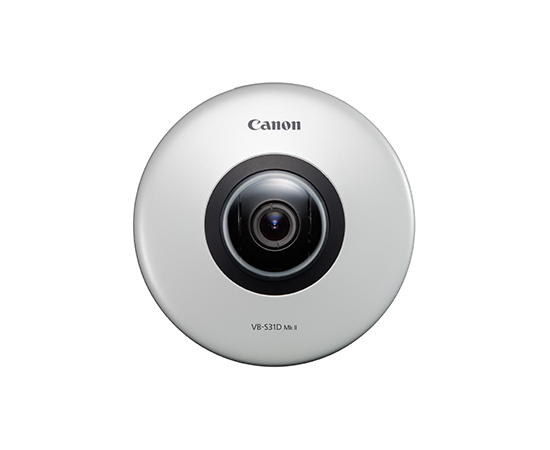

Canon VB-S31D Mk II CCTV Camera

Brand:Canon AXIS

Model:VB-S31D Mk II

Focal Length 2.7 mm

Detail
Canon VB-S31D Mk II CCTV Camera
The PT Minidome is a full
HD network security camera
with ultra-compact lens
technology. Ideal for indoor
security in retail, education
and business environments.
? Full HD at 30fps for clear, detailed images
? CMOS sensor delivers high performance in low light
? Wide angle F/1.6 Canon lens offers a 95.0° Angle of View
? Multi-streaming of MJPEG and H.264 video in Full HD or lower resolutions
? Direct recording / playback from microSD card (64 GB)
? Auto Smart Shade Control (Auto-SSC) applies the optimum exposure for every environment
? Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) help reduce data size while optimising image quality
? Built-in analytics functions for intelligent and efficient alarm detection
? Live monitoring and configuration on supported web browsers and mobile devices
? ONVIF® Profile S compliant
? Compact size: just 120 mm in diameter and 54 mm in height
CAMERA
Image Sensor 1/3 type CMOS (primary colour filter)
Number of Effective Pixels Approx. 2.1 million pixels
Scanning Method Progressive
Lens Fixed focal length lens (4x digital zoom)
Focal Length 2.7 mm
F-number F1.6
Viewing Angle For 16:9 aspect ratios: Horizontal: 95.0°
Vertical: 60.0°
For 4:3 aspect ratios: Horizontal: 76.0°
Vertical: 60.0°
Day / Night Switch Auto / Day Mode / Night Mode
Min. Subject Illumination Day Mode (colour):
0.45 lux (F1.6, shutter speed 1/30 sec., SSC off, 50IRE)
Night Mode (monochrome):
0.25 lux (F1.6, shutter speed 1/30 sec., SSC off, 50IRE)
Shooting Distance (from front
of lens)
0.5 m (1.6 ft.) – infinity
Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500,
1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec.
Exposure Auto / Auto (Flickerless) / Auto (Flickerless2) / Auto (Shutterpriority AE)/Manual
White Balance Auto/Manual
Daylight Fluorescent/White Fluorescent/Warm Fluorescent/
Mercury Lamp/Sodium Lamp/Halogen Lamp
Manual: One-shot WB/R Gain/B Gain
Metering Mode Center-Weighted / Average / Spot
Exposure Compensation 9 levels
Smart Shade Control Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
Haze Compensation Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
AGC Limit 6 levels
Motion-Adaptive NR (Noise
Reduction)
Available
Pan Angle Range 350° (±175°)
Tilt Angle Range 90° (ceiling-mounted position: -90° – 0°)
– When the horizontal direction of the camera is 0°
Moving Speed Pan: Max. 120°/sec., Tilt: Max. 120°/sec.
SERVER
Video Compression Method JPEG, H.264
Video Size JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270
1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality JPEG, H.264: 10 levels
Frame Rate JPEG: 0.1 – 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer PC’s specs, the number of clients accessing
at the same time, network loads, video quality setting, type or movement of the subject
or other reasons.
Max. Frame Rate When streaming JPEG, H.264 (1920 x 1080): 30 fps
When used in the following combinations:
When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps
When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960) simultaneously: 15 fps
When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720) simultaneously: 15 fps
I-Frame Interval 0.5/1/1.5/2/3/4/5 sec.
Simultaneous Client Access Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Bit Rate Control Target Bit Rate:
64/128/256/384/512/768/1024/1536/2048/3072/4096/6144/8
192/10240/12288/14336/16384 kbps
ADSR: Area-specific Data
Size Reduction
Number of Specified Areas: Max. 8 areas
Data Size Reduction Level: 3 levels
Encrypted Communications SSL / TLS, IPsec (Auto Key Exchange / Manual)
IEEE 802.1X EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Protocol IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2),
DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP,
RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon
proprietary)
ONVIF Profile Profile-S
Audio Compression Method G.711 μ-law (64 kbps)
Audio Communication
Method
Audio Reception Only
Privacy Mask Number of registration: Max. 8 places, Number of mask colours: 1
(select from 9 colours)
View Restriction Available
Preset Number of registers: Max. 64 positions (+Home Position)
Intelligent Function Video:
Moving Object Detection, Abandoned Object Detection,
Removed Object Detection, Camera Tampering Detection,
Passing Detection, Intrusion Detection
Detection Settings: Max. 15
Non-detection Area Settings: Available
Audio:
Volume Detection, Scream Detection
Event Trigger Type External Device Input, Intelligent Function (Video), Intelligent
Function (Audio), Timer, Day/Night Mode Switching
Number of Linked Events: 2
Linked Event Conditions: OR, AND (whether or not there is a
sequence to events)
Image Upload FTP / HTTP / SMTP (e-mail)
Event Notification HTTP / SMTP (e-mail)
On-Screen Display Available (English only)
- The following languages require the use of the On-Screen
Display Assist Tool.
German/Spanish/French/Italian/Polish/Russian/Turkish/
Korean/Chinese (Simplified) /Japanese
Daylight Saving Time Available
APPLICATION
Viewer Camera Viewer
Mobile Camera Viewer
Camera software Camera Management Tool
Recorded Video Utility
On-Screen Display Assist Tool
Language German/English/Spanish/French/Italian/Polish/Russian/
Turkish/Thai/Korean/Chinese (Simplified) /Japanese
INTERFACE
Network Terminal LAN x 1 (RJ45, 100Base-TX (auto / full-duplex / half-duplex))
Audio Input Terminal
(common for LINE IN &
MIC IN)
Φ3.5 mm (Φ0.14 in.) mini-jack connector (monaural)
LINE IN (connect to an amplifier microphone) or MIC IN (connect
to a microphone w/o amplifier)
– Switch LINE IN/MIC IN in the Setting Page.
External Device I/O Terminal Input x 1, Output x 1
Memory Card microSD Memory Card, microSDHC Memory Card, microSDXC
Memory Card Compatible.
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps
OTHER
Operating Environment Temperature: -10°C – +50°C (+14°F – +122°F)
Humidity: 5% – 85% (without condensation)
Power Supply PoE: PoE power supply via LAN connector (IEEE802.3at Type1
compliant)
Power Consumption Max. 7.6 W
– Class 0 power sourcing equipment (requests 15.4 W)
Dimensions (Φ x H) Φ120 x 54 mm (Φ4.72 x 2.13 in.) – excluding projections
Weight Approx. 270 g (9.6 oz.)
International Standard EN55032 Class B, FCC part15 subpart B Class B, ICES-003 Class
B, VCCI Class B, RCM AS/NZS EN55032 Class B, CNS13438 Class
B, EN55024, EN50581
IEC/UL/EN60950-1
All data is based on Canon standard testing methods except
