Model:PE3036OS1-SDI
lens:f=4.7 mm (wide) to 94.0 mm

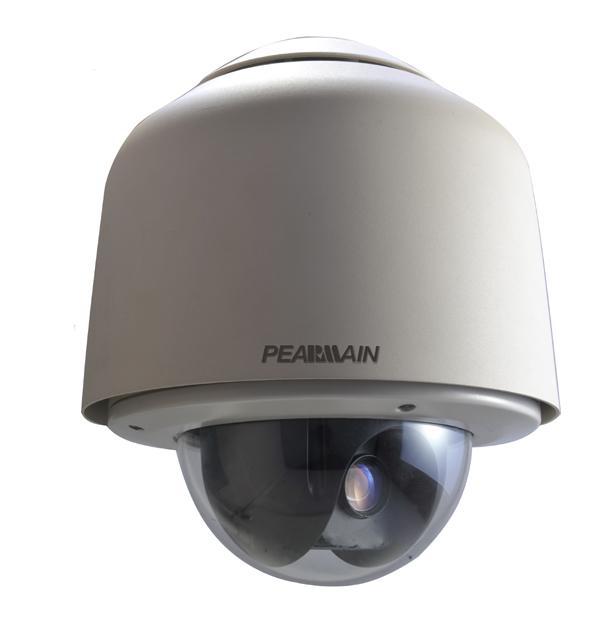

PE3036OS1-SDI is HD-SDI High speed dome camera, having Sony FCB-EH6300, 1/2.8-type ‘Exmor’ CMOS, 20x optical zoom, 12x Digital zoom, Day/Night double-shell housing of aluminium, multiple bracket for all applications.
Introduction Features
Support HD-SDI output（1920x1080@30p），it could set video format by RS485 remotely: 1080i/60 720p/60 1080i/50 720p/50 1080p/30 1080p/25
Broadcasting level video, no compression, real-time and full HD output.
Automatically identify PEAMRAIN or PELCO D/P protocol
Powerful OSD menu for setup of Programmable Functions
With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene at any time.
Built-in linear power for anti-surge and anti-Lightning protection
it could set address to be 0, offer convenience for maintaince.
Preset position storage function, it can save maximum 256 preset.
8 cruise tours, every tour can call 32 preset.
4 Pattern tours, to save the scan route by joystick.
1 automatic scan, the scope of two limits can be scanned gradually, the scanning steps are optional.
Automatic recover to movement before power failure.
Power-up action, preset, cruise tour, pattern tour, auto scan, etc. available for it.
Park action, preset, cruise tour, pattern tour, auto scan, etc. available
360° continuous panning.
Horizonal scan within 355 degree.
On-Screen display: Compass, Pan, Tilt, Zoom ratio.
Features:
Block Camera (Sony FCB-EH6300)
Image sensor 1/2.8-type ‘Exmor’ CMOS
Signal system
HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 29.97 PsF), 1080i/50 (frame out: 25PsF) 720/59.94p, 720/50p, 720p/29.97, 720p/25 SD: NTSC, PAL (640x360)
Number of total pixels
Approx. 3.27 Megapixels
Lens 20x optical zoom, f=4.7 mm (wide) to 94.0 mm (tele), F1.6 to F3.5
Digital zoom
12x (240x with optical zoom)
Angle of view (H)
1080p/30 mode: 55.4° (wide end) to 2.9° (tele end)720p/60, 30 mode: 37.6° (wide end) to 1.95° (tele end)
Minimum working distance
10 mm (wide) to 1000 mm (tele) (Default 300mm)
Sync system
Internal
Minimum illumination
High sensitivity mode: 0.5 lx (ICR Off) 0.095 lx (ICR On) (F1.6, 50 IRE)Normal mode: 1.7 lx (ICR Off) 0.3 lx (ICR On) (F1.6, 50 IRE)
S/N ratio
More than 50 dB
Electronic shutter
1/1 to 1/10,000 s, 22 steps
White balance
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapour Lamp (fix/Auto) One-push, Manual
Gain
Auto/Manual (-3 to +28 dB, +2 dB step/total 16 steps) Max. Gain Limit (+6dB to +28 dB, +2 dB step/total 12 steps)
AE control
Auto, Manual, Shutter Priority, Iris Priority, Bright, Spot AE, Slow AE (approx 5 minutes)
EV compensation
N/A
Focusing system
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on.
Video output
HD Analogue: Component Y/Pb/Pr; Digital Y/Cb/Cr 4:2:2 via LVDS (signal format conforms to SMPTE296) SD VBS
Camera control interface
VISCA (CMOS 5 V level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, stop bit: 1bit
Parameter Description
Pan-tilt:
Address 0~255
Pan range 360°Continue
Tilt range 0°~90° Flip
Manual speed Pan 0.05~240°/Sec
Manual speed Tilt 0.05~180°/Sec
Preset speed 240°/Sec
Preset accuracy ±0.50°
Preset 255
Remote firmware updating and setup
to update firmware by RS485, to set ID by RS485
Cruise Tours
8 Programmable(Dwell time speed preset point)
Speed setup for cruise tour
Yes
Pattern Tours
4 Programmable
Auto Scan
1 Programmable (355° scan )
Time adjustment
to adjust Time by broadcasting
Integrate multi-protocol
Pelco_D/P, PEARMAIN,or OEM
Protocol Automatic identify
Pelco_D/P, PEARMAIN
Home position
Yes, preset, cruise tour, pattern tour, auto scan, etc. available
Broadcasting address Yes
Intelligent power-off memory current setting and state Yes
anti-surge and anti-Lightning protection Yes, power port: 4KV, video and data port:2KV
OSD menu operation Yes
Supporting camera
Sony, Hitachi , etc.
Camera menu operation Yes
Camera character programming
20 character
Privacy masking Yes
Ingress Protection IP66 Yes
Operating Temperature –35℃~65℃
Humidity 0%~90% (Non condensing)
Heater operate (-5)℃ on +5℃ off
Power 24VAC±25%,60Hz/50Hz
Consumption heater off 15W heater on 35W
communication RS485
Video otuput HD-SDI
