Brand:AXIS
Model:AXIS Q1686-DLE
weight:5100g
lens:Image sensor 1/1.8” progressive scan RGB CMOS
Pixel size 2.9 μm
Lens Varifocal, 9–50 mm, F1.5
Horizontal field of view: 46°–9°
Vertical field of view: 26°–5°
Minimum focus distance: 3 m (9.8 ft)
Autofocus, i-CS lens, IR corrected, remote zoom and focus, P-Iris
control

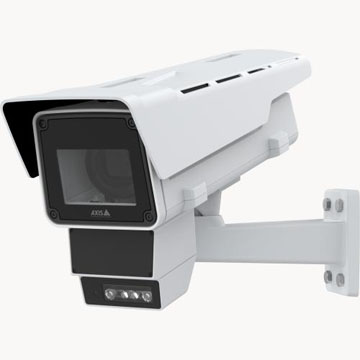

AXIS Q1686-DLE Radar-Video Fusion Camera
AXIS Q1686-DLE AU, EU, UK, US 02968-001
AXIS Q1686-DLE IN 02968-113
Technical specifications
DATASHEET (PDF)
Models: AXIS Q1686-DLE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 9-50 mm mm
Horizontal field of view 46.22-9.16 °
Vertical field of view 26.20-5.24 °
Lens mount CS
Replaceable lens –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 4
Wireless –
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Sustainability BFR/CFR free
Power
Property description Property value
Power (max) 25.5 W
Power (average) 9.5 W
DC input voltage 10-28 V
Cables & connectors
AXIS Connector A 2-pin 2.5 Straight
AXIS Connector A 2-pin 2.5 Straight, 10 pcs
For various Axis products
Included with this product
AXIS Connector A 2-pin 3.81 Straight
AXIS Connector A 2-pin 3.81 Straight, 10 pcs
For various Axis products
Included with this product
AXIS Connector A 6-pin 2.5 Straight
AXIS Connector A 6-pin 2.5 Straight, 10 pcs
Extended I/O connector for Axis products
Included with this product
Gasket C M20
Gasket C M20
Included with this product
Network Cable Coupler IP66
Network cable coupler indoor
For extension of pre-terminated cables
Network cable coupler indoor slim
For extension of pre-terminated cables
Edge storage
AXIS Surveillance Card 1TB
High endurance microSDXC? card
Recommended for this product
AXIS Edge storage suveillance card 128 GB from the front
AXIS Surveillance Card 128 GB
High endurance microSDXC? card
Recommended for this product
AXIS edge surveillance card 256 GB from the front
AXIS Surveillance Card 256 GB
High endurance micro SDXC? card
Recommended for this product
AXIS Surveillance Card 512 GB, viewed from its front
AXIS Surveillance Card 512 GB
High endurance microSDXCTM card
Recommended for this product
AXIS Surveillance Card 64 GB
AXIS Surveillance Card 64 GB
High endurance microSDXC? card
Recommended for this product
Housings & cabinets
AXIS T98A16-VE Media Converter Cabinet A
AXIS T98A16-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
Recommended for this product
AXIS T98A16-VE Surveillance Cabinet
AXIS T98A16-VE Surveillance Cabinet
Robust cabinet for easy installation of critical system equipment
Recommended for this product
AXIS TQ1804-BE Top Cover black and white cover
AXIS TQ1804-BE Top Cover
Included with this product
Recommended for this product
AXIS TQ1907-E Front Window Kit, viewed from its left angle
AXIS TQ1907-E Front Window Kit
Included with this product
Recommended for this product
I/O devices
AXIS I/O Indication LED
AXIS I/O Indication LED
Surveillance in action
Illuminators
AXIS T90D20 IR-LED Illuminator
AXIS T90D20 IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D20 PoE IR-LED Illuminator
AXIS T90D20 PoE IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D25 PoE W-LED Illuminator
AXIS T90D25 PoE W-LED
High-performance white LED illuminator with ease of installation
AXIS T90D25 W-LED Illuminator
AXIS T90D25 W-LED
High-performance white LED illuminator with ease of installation
AXIS T90D30 IR-LED Illuminator
AXIS T90D30 IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D30 PoE IR-LED Illuminator
AXIS T90D30 PoE IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D35 PoE W-LED Illuminator
AXIS T90D35 PoE W-LED
High-performance White LED illuminator with ease of installation
AXIS T90D35 W-LED Illuminator
AXIS T90D35 W-LED
High-performance white LED illuminator with ease of installation
AXIS T90D40 IR-LED Illuminator
AXIS T90D40 IR-LED
High-performance infrared LED illuminator with ease of installation
White AXIS TQ1902-E IR Illuminator Kit viewed from its left
AXIS TQ1902-E IR Illuminator Kit
Power-efficient IR and White LEDs for surveillance at night
Lenses
AXIS Lens Cloth
AXIS Lens Cloth
Keeps lenses clean
Media converters
AXIS T8604 Media Converter Switch
AXIS T8604 Media Converter Switch
Converts Ethernet to fiber 12 V DC
AXIS T86 media converter from left
AXIS T8606 Media Converter Switch 24 V DC
Converts Ethernet to fiber 24 V DC
AXIS T98A16-VE Media Converter Cabinet A
AXIS T98A16-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
Recommended for this product
Microphones
AXIS T8351 Mk II Microphone 3.5 mm
AXIS T8351 Mk II Microphone 3.5 mm
High-performance, low noise analog microphone for superior audio
Recommended for this product
AXIS T8353A Microphone 3.5 mm
AXIS T8353A Microphone 3.5 mm
For professional audio surveillance
Recommended for this product
AXIS T8355 Digital Microphone
AXIS T8355 Digital Microphone 3.5 mm
Digital microphone with lossless interface for superior audio
Recommended for this product
TU1001-VE from left angle.
AXIS TU1001-VE Microphone
A robust outdoor-ready microphone
Requires additional accessory
Recommended for this product
Mounts
AXIS T91B47 Pole Mount
AXIS T91B47 Pole Mount
For different pole diameters
Recommended for this product
AXIS T94Q01A Wall Mount
AXIS T94Q01A Wall Mount
For outdoor fixed box cameras and housings
Included with this product
AXIS T94R01B Corner Bracket
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
Recommended for this product
AXIS T94V01C Dual Camera Mount
AXIS T94V01C Dual Camera Mount
Back-to-back camera installation made easy
AXIS TQ1003-E Wall Mount
AXIS TQ1003-E Wall Mount
For outdoor fixed box cameras and housings
AXIS TQ1501-E Crane and Traffic Mount, viewed from its left angle
AXIS TQ1501-E Crane and Traffic Mount
Fewer vibrations and more stability
Recommended for this product
AXIS TQ1601-E Conduit Back Box, white angled to its left
AXIS TQ1601-E Conduit Back Box
Aluminum conduit back box for increased mounting possibilities
Recommended for this product
Power
AXIS 30 W Midspan, viewed from itrs left
AXIS 30 W Midspan
For indoor use, 240 V AC
Recommended for this product
A black rectangular AXIS 30 W Midspan AC/DC
AXIS 30 W Midspan AC/DC
When mains power is not an option, 30 W
AXIS Outdoor midspan 30 W from the left angle
AXIS 30 W Outdoor Midspan
For outdoor use, -40 °C to 65 °C (-40 °F to 149 °F)
Recommended for this product
AXIS Mains adapter 12V DC 40W
AXIS Mains Adapter 12 V DC 40 W
AXIS T8061 Ethernet Surge Protector
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
Recommended for this product
AXIS T8134 60 W Midspan
AXIS T8134 60 W Midspan
For high-power devices
AXIS T8144 60 W Industrial Midspan
AXIS T8144 60 W Industrial Midspan
Robust in industrial installations
AXIS T8154 60W SFP Midspan
AXIS T8154 60 W SFP Midspan
For network or fiber installations
Recommended for this product
AXIS TU8001 Ethernet Surge Protector
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosure
Recommended for this product
AXIS TU8002-E 90 W Midspan, viewed from its left angle
AXIS TU8002-E 90 W Midspan
For high-power outdoor installations
TU8004
AXIS TU8004 90 W Midspan
For high-power devices
AXIS tu8010.
AXIS TU8010 2-port PoE Extender
2-port indoor PoE extender
AXIS TU8011 with cable inputs.
AXIS TU8011 4-port PoE Extender
4-port indoor PoE extender
Power adapters
AXIS T8006 PS12
AXIS T8006 PS12
Versatile 12 V DC power supply
AXIS T8007 PS24
AXIS T8007 PS24
Versatile 24 V DC power supply
AXIS T8008 PS12
AXIS T8008 PS12
12 V DC power supply
AXIS T8008 PS24
AXIS T8008 PS24
24 V DC power supply
Power Supply DIN CP-D 12/2.1 25 W
Power Supply DIN CP-D 12/2.1 25 W
A DIN power supply to power cameras and media converters
Power Supply DIN CP-D 24/4.2 100 W
Power Supply DIN CP-D 24/4.2 100 W
For use in AXIS T98A-VE Cabinet Series
Switches
AXIS D8004 from the right angle
D8004 unmanaged PoE switch
Your perfect entry-level PoE switch
AXIS D8208-R Industrial PoE++ Switch, viewed from its left angle
AXIS D8208-R Industrial PoE++ Switch
Managed, 8-port industrial PoE++ switch
Recommended for this product
AXIS T8504-E Outdoor PoE Switch
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switch
AXIS T8504-R Industrial PoE Switch
AXIS T8504-R Industrial PoE Switch
Managed, industrial PoE switch
Recommended for this product
AXIS T8508 PoE+ Network Switch
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
AXIS T8516 PoE+ Network Switch
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
AXIS T8524 PoE+ Network Switch
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
Tools & extras
AXIS 4-in-1 Security Screwdriver Kit
AXIS 4-in-1 Security Screwdriver Kit
Convenient tool for installing Axis products
AXIS Bird Control Spike
AXIS Bird Control Spike
Keep your outdoor network cameras clean
Recommended for this product
AXIS I/O Indication LED
AXIS I/O Indication LED
Surveillance in action
AXIS Lens Cloth
AXIS Lens Cloth
Keeps lenses clean
AXIS T8415 Wireless Installation Tool
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
Recommended for this product
Video decoders
AXIS D1110 VIdeo Decoder 4K
AXIS D1110 Video Decoder 4K
4K video decoder with HDMI? output
Weathershields
AXIS P13 Weathershield Kit A
AXIS P13 Weathershield Kit A
For protection from rain, snow or sun
Included with this product
