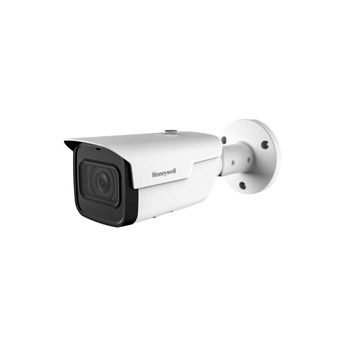

HBW8PR2 Honeywell Network WDR 8MP IR Bullet Camera

OPERATIONAL
VIDEO STANDARD NTSC/PAL
SCANNING SYSTEM Progressive
IMAGE SENSOR 1/2” 8 Megapixel progressive CMOS
NUMBER OF PIXELS (H × V) 3840(H) x 2160(V)
MINIMUM ILLUMINATION 0.09lux/F1.9(color,30IRE), 0 Lux with IR ON
S/N RATIO More than 45dB
ELECTRONIC SHUTTER
SPEED 1/3~1/100000s
IR DISTANCE Up to 60m (197ft), depending on scene
reflectance
IR LIGHT CONTROL Manual/SmartIR/OFF
IR LIGHT NUMBER 4
DAY/NIGHT Auto (ICR) / Color / B&W
BACKLIGHT COMPENSATION BLC / HLC / WDR
WHITE BALANCE Auto/Natural/Street Lamp/Outdoor/Manual/
Customized Region
GAIN CONTROL 0~100
WIDE DYNAMIC RANGE 120dB
NOISE REDUCTION 3D DNR
PRIVACY MASKING Off / On (4 Areas, Rectangle)
MOTION DETECTION Off / On (4 Zones, Rectangle)
REGION OF INTEREST Off / On (4 Zones)
LENS 3.7mm~11mm, Motorized, F1.9
ANGLE OF VIEW H: 113°~50°, V: 60°~28°
VIDEO
VIDEO COMPRESSION H.264/H.264B/H.264H/H.265/Smart Codec/
MJPEG (Sub Stream)
RESOLUTION
4K(3840×2160)/6M(3072×2048)/
5M(3072*1728)/5M(2592*1944)/
4M(2688*1520)3M(2048x1536)/
3M(2304×1296)/1080P(1920×1080)/
1.3M(1280x960) /720P(1280×720)
Sub Stream: D1(704×480/576)/VGA(640×480)/
CIF(352×240/288)
FRAME RATE Main Stream: 4K (1~25/30fps)
Sub Stream: D1(1~25/30fps)
BIT RATE CONTROL CBR/VBR
BIT RATE 4Kbps~15104Kbps

NETWORK
ETHERNET RJ-45 (10/100Base-T)
SUPPORTED WEB BROWSERS Internet Explorer (11.0+)
SUPPORTED OS Windows® 7 32-bit/64-bit;
Windows® 10 32-bit/64-bit
PROTOCOLS*
HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP;
DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x;
Multicast; ICMP; IGMP; TLS
INTEROPERABILITY ONVIF Profile S/G/Q
MAXIMUM USERS ACCESS 20 Users
SECURITY
User account and password protection HTTPS, IP Filter, Digest
authentication, User access log, TLS1.2 only, AES-128/256,
SSH/Telnet closed, sFTP by default, PCIDSS compliance
EVENT No SD card, SD card error, Capacity warning, Network
disconnection, IP conflict, Illegal access
MICRO SD Up to 128 GB microSDHC card, Class 10 (not included)
ELECTRICAL
POWER SUPPLY DC12V PoE (802.3af)(Class 0)
POWER CONSUMPTION <14.3W
MECHANICAL
DIMENSIONS ?244.1mm×79mm×75.9mm (9.61”×3.11”×2.99”)
PRODUCT WEIGHT 0.95kg (2.09lb)
PACKAGE WEIGHT 1.16kg (2.56lb)
CONSTRUCTION Die-cast aluminum housing with powder coat
CONSTRUCTION COLOR RAL 9003 (White)
ENVIRONMENTAL
OPERATING TEMPERATURE -30° C ~ +60° C (-22° F ~ +140° F)
RELATIVE HUMIDITY Less than 95%, non-condensing
INGRESS PROTECTION IP66
REGULATORY
EMISSIONS FCC Part 15B, EN 55032
IMMUNITY EN 50130-4
SAFETY UL 60950-1, EN 62368-1
ROHS EN 50581

SYSTEM COMPATIBILITY
HEN*4
8/16/32/64-channel Performance Series 4K NVRs (H.264 and H.265)
HEN*3
4/8/16/32-channel Performance Series 4K NVRs (H.264 and H.265)

MOUNTS AND ACCESSORIES
HB34S2-CM
Corner Mount Adapter
HQA-PM2
Pole Mount Adapter
HBS2-BB
Junction Box

HBW8PR2
Network WDR 8MP IR Bullet Camera, 1/2" CMOS, 3.7mm~11mm Motorized, 4 IR LEDs, PoE, IP66, H.265/H.264/Smart Codec
