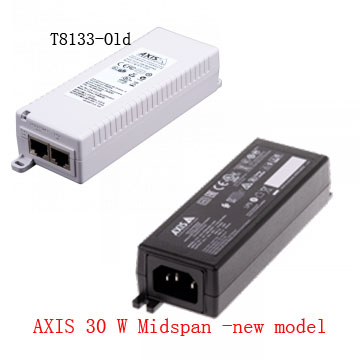

Yuluo-AXIS T8133 Midspan 30 W 1-port -AXIS 30 W Midspan
AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W)
and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single
network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to
replace existing Ethernet switches and cabling infrastructure.
> IEEE 802.3af and IEEE 802.3at
> 10/100/1000 Mbps
> 100 to 240 V AC
> Plug-and-play
AXIS 30 W Midspan
Midspans
Function Data and power are fed to a network video product through an
Ethernet cable
Use together with a PoE splitter for a network video product
without built-in PoE support
Data rate 10/100/1000 Mbps
Installation and
management
Automatically detects PoE and supplies inline power
Local LED management display
Data & power
Power Power over Ethernet Plus (PoE+)
IEEE 802.3at Type 2 Class 4
Input AC input voltage:
100 to 240 V AC
AC frequency:
47–63 Hz
Output Voltage: 56 V DC (max 30 W)
Power
consumption
No remote device connected: <100mW
Connectors Shielded RJ45
Power connector C13
Wiring Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over
all four pairs for Gigabit Ethernet
Power provided over pairs 1/2 -ve, 3/6 +ve
General
Casing Plastic
Color: black
Sustainability PVC free
Halogen free
Display and
indicators
LEDs are located on the front panel
Port LED: power indicator and data connectivity
Mounting Wall, shelf or DIN rail
Operating
conditions
At 30 W:
-20 °C to 40 °C (-4 °F to 104 °F)
At 15 W:
-20 °C to 55 °C (-4 °F to 131 °F)
Humidity max 95% RH (non-condensing)
Storage
conditions
-40 °C to 75 °C (-40 °F to 167 °F)
Approvals Model POEA30U-1ATE.
Safety
IS 13252,UL 60950-1, UL 62368-1, CCC
EMC
EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,
VCCI Class A, CISPR 24, EAC
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78
Dimensions 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in)
Weight 145 g (0.3 Ib)
Included
accessories
Installation guide
Cable Mains IEC-C13
Optional
accessories
AXIS T91A03 DIN Rail Clip
For more accessories, see axis.com
Warranty Axis 3-year warranty, see axis.com/warranty
