Home > Product > Huawei Holosens CCTV System > Huawei AI Box Cameras

D2120-10-SIU Huawei 1T 2MP AI IR bullet camera

Brand:Huawei

Model:D2120-10-SIU

len:Focal length 2.8-12mm
Angle of view Horizontal:42°(T) to 95.5°(W);Vertical:24°(T) to 52°(W)
IR range 50m

Detail

D2120-10-SIU Huawei 1T 2MP AI IR bullet camera

1 TOPS computing power
Supports multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, person detection, and object classification
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/2.7" CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports switchover among multiple algorithms
CPU Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash type SPI NAND FLASH 512.0 MB
Max resolution 2MP 1920(H)*1080(V)
Sensor size 1/2.7" CMOS
Min illumination Color: 0.002 lux (F1.6, AGC ON); B/W: 0.001 lux (F1.6, AGC ON) or 0 lux (infrared illuminator enabled)
Focal length 2.8-12mm
Angle of view Horizontal:42°(T) to 95.5°(W);Vertical:24°(T) to 52°(W)
IR range 50m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target attribute recognition/Target recognition
Person Person detection
Non-motorized vehicle Object classification
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type DC12V,PoE(IEEE 802.3af)
Power consumption Maximum:12.2W,typical:3.2W
Operating temperature -30℃~55℃
Operating humidity 5% to 95%(non-condensing)
IP rating IP67
Max resolution 2MP 1920(H)*1080(V)
Sensor size 1/2.7" CMOS
Min illumination Color: 0.002 lux (F1.6, AGC ON); B/W: 0.001 lux (F1.6, AGC ON) or 0 lux (infrared illuminator enabled)
Shutter speed Supports slow shutter Slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15 Non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Full intelligence mode: Slow shutter is not supported; target checkpoint: 1/100; micro checkpoint: 1/250 Target checkpoint: 1/100 Micro checkpoint: 1/250 Behavior analysis: 1/25
Day/Night mode Supported; automatic (ICR)/Color/B/W (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
Gain control Manual exposure: 101 levels configurable from 0 to 100 (step: 1; default: 0)
White balance Auto/Manual/OnePush
Digital noise reduction 2D/3D noise reduction
WDR 120dB
Highlight compensation Supported
Image stabilization Supported Sensitivity levels are not supported.
Defogging Supported
Exposure compensation Supported
Exposure mode Supported
SNR >45dB
Motorized focus Supported
Day/Night focus compensation Supported
Backlight adaptation Supported
Overcast adaptation Supported
Speed adaptation Supported
Distortion correction Supported
Corridor mode Supported
Image correction Vertical, horizontal, or both
Digital zoom Supported
Privacy mask Supported
Focal length 2.8-12mm
Max f-number F1.6
Lens aperture type Fixed iris
Angle of view Horizontal:42°(T) to 95.5°(W);Vertical:24°(T) to 52°(W)
Built-in IR illuminator Supported
IR range 50m
Video encoding format MJPEG/H.264/H.265
Video encoding channels Triple streams
Primary stream resolution 1920×1080(1080P),1280×720(720P)
Secondary stream resolution Secondary stream 1:1920×1080(1080P),1280×720(720P),720×576(PAL),720×480(NTSC); Secondary stream 2:720×576(PAL),720×480(NTSC),352×288(PAL),352×240(NTSC)
Video frame rate 60/50/Configurable (25 fps or 30 fps)
Video bit rate Only for H.264 and H.265 1080P to 4K 512kbit/s to 16Mbit/s 720P 384kbit/s to 8Mbit/s D1 256K to 4Mbit/s CIF 32K to 1Mbit/s
Intelligent encoding Extra265/264
Region of Interest (ROI) Each channel supports a maximum of four ROIs. The image quality in an ROI is configurable from 0 to 10 (step: 1).
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726:8K OPUS:8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64 kbit/s; G.726: configurable (16/24/32/40 kbit/s); OPUS: configurable (16/24/32/40/64/96/128/160/192/224/256/288 kbit/s)
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target attribute recognition/Target recognition
Person Person detection
Non-motorized vehicle Object classification
Multi-algorithm switchover Supported
SD card port MicroSD card slot that supports microSDHC/microSDXC; maximum memory card capacity: 256 GB
Audio-in port Supported (one-channel LINE IN or one-channel external MIC)
Audio-out port Supported (one-channel LINE OUT)
RS-485 port Supported,One half-duplex RS-485 port
Boolean port Supported,2 input port and 1 output port
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Access protocol GB/T 28181 (2011, 2016)/SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400
Protocols supported by IPv4 TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, and PPPoE. Note: The northbound protocol needs to adapt to the PPPoE dialup scenario.
Protocols supported by IPv6 HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6
Services supported by IPv6 Web page: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration.
ONVIF: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration; does not support Wi-Fi probe.
Note: 1. IPv6 multicast is not supported.
2. DNS is not supported.
3. IP address conflict check is not supported.
User rights Three user roles: administrator, advanced operator, and common operator
Security mode User name and password authentication, 802.1X authentication, and HTTPS digital certificate
Image digital watermark Supported
GB 35114 Supported
Secure boot Supported
Power type DC12V,PoE(IEEE 802.3af)
Power consumption Maximum:12.2W,typical:3.2W
Operating temperature -30℃~55℃
Operating humidity 5% to 95%(non-condensing)
Surge protection 4kV
IP rating IP67
Net weight 1.0kg
Gross weight 1.2kg
Device dimensions 88mm×107mm×206mm
Package dimensions 115mm×140mm×297mm

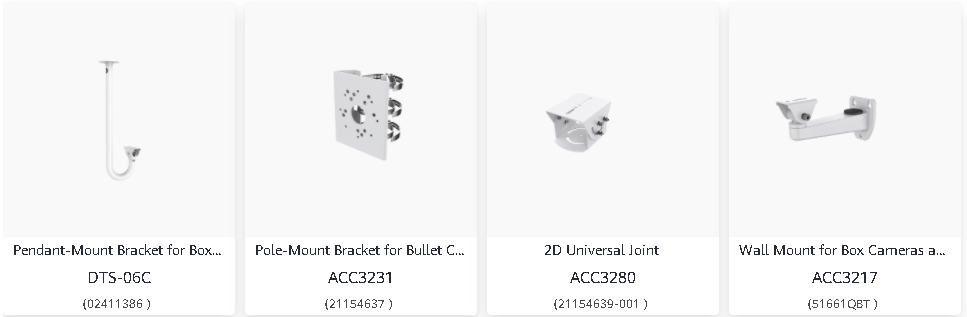

Accessory
