Brand:Pelco
Model:S7230L-PW
Lens:4.3mm-129.0mm

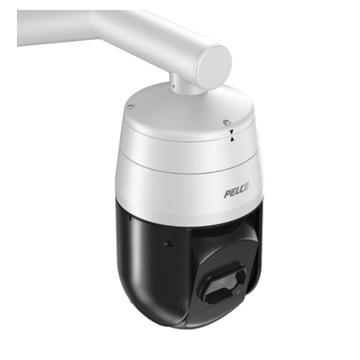

S7230L-PW Pelco IR Look-Up PTZ High-speed PTZ Camera
Product Features
2 MP x 30 to capture more details at distance
Integrated Varizoom IR 200 m to see in total darkness
SureVision Technology, including:
-Up to 130 dB Wide Dynamic Range (WDR)
-Advanced Low Light down to 0.035 LUX (color), 0.0195 lux (mono)
-Anti-Bloom Technology
Up to 2 MP and up to 60 images per second (ips)
Robust image stabilization (EIS with Gyro 2 MP x 30)
Built-in Enhanced Analytics suite
Pelco Advanced Analytics Suite powered by AI Analytics
Lookup tilt range +30° to see above the horizon
Pelco H.264 and H.265 Smart Compression Technology
Vandal-resistant IK10
Pelco Camera Link
Compatible with Pelco and third-party video systems
ONVIF Profile S, Profile G, and Profile T Conformant
Top of the Line IP Performance
Pelco’s Spectra® Enhanced 7 Series of high speed IR Look-up PTZ 30x cameras provide top tier image quality,
performance, and intelligent embedded features for critical infrastructures such as cities, bridges,roadways, ports,
transportation and stadiums. Image quality, performance, and intelligent embedded features for state-of-
the-art surveillance solutions. This PTZ camera brings wide area
coverage, high-speed tracking and long range detail in poorly lit areas allowing security operators to
monitor larger areas with the 30 degrees look up and automated IR illumination to see in the dark so no incident can
be missed. Low latency video and control make the camera incredibly easy to control. Direct Drive
closed loop control enables blazing pan and tilt speeds up to 450 degree/ second to position the camera on
target avoiding perceived PT delays so that critical forensic evidence is captured. Direct Drive
closed loop systems have advantages such as limited wear and tear and maintenance, silent, extremely accurate
positioning, and the camera always knows its position.Power redundancy between PoE and 48 VDC/24 VAC ensures 24-hour, 365-day continuous
operation even under unstable power supply situations.
Full High Definition SureVision Cameras
Spectra Enhanced Series IR look-up PTZ domes feature up to 2 MP, 30X optical zoom.
They run at up to 60 frames per second and provide up to 130dB of Wide Dynamic Range (WDR) with Pelco’s
latest SureVision low light performance.
Intelligent Imaging Features
The Spectra Enhanced Series PTZ domes have the capability to run AI powered analytics.
Included in all models are a Pelco Enhanced Suite of analytics including: Abandoned Object, Adaptive
Motion Detection, AutoTracker, Camera Sabotage, Directional Motion, Loitering Detection, Object
Counting, Object Removal, and Stopped Vehicle.
Spectra Enhanced also allows for up to 16 window blanking privacy zones that are
configurable with custom blurring options. Three levels of Image Defog provide options for enhancing the
image on foggy or rainy days. Five White Balance modes are available for overcoming difficult lighting
conditions day and night. A Vivid Imaging mode can be enabled to automatically increases color aturation
and sharpening. Spectra Enhanced supports up to 2TB of onboard local storage (not supplied) that is
easily accessible through the ONVIF Profile G protocol or FTP.
Intuitive Design
IR Illumination with Lookup Spectra Enhanced IR look-up models can see in absolute
darkness. The infrared illumination (IR) has proportional brightness based upon zoom, creating
visible pictures without any light up to 200 m from the camera. Spectra Enhanced IR look-up models offer a wider
tilt range giving the camera the ability to look above the horizon 30 degrees.
Spectra Enhanced Series features the same ease of installation and maintenance that
you have come to expect from Spectra.
VMS Integration
Spectra Enhanced easily connects to Pelco IP and hybrid video systems such as
VideoXpert.Pelco endeavors to be the most open and integrated camera provider in the industry and
as a part of that effort Spectra Enhanced is integrated with a long and ever-growing list of third-party
software and Video Management Systems (VMS)
Back Box Features
Available in white finish (RAL9003)
Aluminum construction, IK10 rated housing and window
Type 4X, IP66, and IP67
2 MP 30x model
Uses 1 1/2-inch NPT thread
Includes heater and blower
–51° to 60°C (–60° to 140°F) sustained operating temperature
Camera/Optics
Specification 2MP, 30x Model Sensor type Progressive 1/2.8-inch type Exmor CMOS sensor
Optical zoom 30X
Digital zoom 12X
Maximum resolution 1920 x 1080
Lens f/1.6 ~ f/4.7, focal length 4.3 mm (wide) ~ 129.0 mm (tele)
Horizontal angle of view 59.8° wide - 2.3° tele
Aspect ratio 16:9
Light sensitivity
Color (33ms) 0.035 lux (color)
Specification 2MP, 30x Model
Color (250ms) 0.00375 lux (color)
Mono (33ms) 0.0195 lux (mono)
Mono (250 ms) 0.0024 lux (mono)
Day/night capabilities Yes
Shutter range 1/1 ~ 1/10,000 sec
White Balance Range 2,000o to 10,000oK
Signal-to-noise ratio 50dB
IR cut filter Yes
Wide Dynamic Range 130dB maximum; 120 dB per IEC62676
Iris control Auto iris with manual override
Backlight compensation Yes
Automatic gain control Yes
Active noise filtering 3D noise filtering
Electronic Image Stabilization (EIS) Yes
Bit rate control Constrained variable bit rate (CVBR) and constant bit rate (CBR)
Video snapshot JPEG capture at the same resolution as the highest stream configured
Window blanking 16 configurable windows
Video overlay Camera name, time, date, and customizable text withmultiple supported
languages. Embedding of custom imagesand logos supported.
Flicker correction Auto
Software Features
256 presets
32 tours
±0.03° preset accuracy
8 configurable scans
Patterns–8 recordable patterns (up to 5 minutes each)
Multilingual menus (English, Spanish, Portuguese, Italian, German, French, Russian,
Turkish,Simplified Chinese, and Korean)
Password protection
16 window blanks, configurable in size
Auto Flip” feature rotates dome 180° at bottom of tilt travel
Configurable park with actions
Proportional pan/tilt continually decreases pan/tilt speeds in proportion to depth of zoom
Pelco analytics including nine user-configurable behaviors
Multiple DNN analytics behaviors
Image Defog modes
IR illumination with proportional brightness based upon zoom
General
Item Specification
hzjxj.com.cn 13715181445
Construction Aluminum, thermo plastic
Cable Entry (back box,pendant) Through 1.5-inch NPT pendant mount
Unit Weight (2MP, 30X): 7.65 kg (16.9 lbs)
Shipping Weight (2MP, 30X): 8.85 kg (19.5 lbs)
Effective Projected Area (EPA) 0.071 square meters (110 square inches)
Effective Projected Area withIWM Mount :0.103 square meters (160 square inches)
Alarm
Unsupervised Detects open or closed alarm state
Supervised Detects open and short alarm state with external 1-kohm resistor
Inputs (4) :3.5 VDC maximum, 3.5 mA maximum
Relay outputs (2): ±32 VDC maximum, 150 mA maximumSystem Model Numbers
Model numbers for pendant, environmental cameras are:
Back Box Color System Resolution Model# Description
White (RAL 9003) 2MP 30X S7230L-PW Spectra Enhanced 7 IR Look-Up PTZ
Recommended Mounts Pendant Domes
Part Number Mount
IWM-SW Wall mount, white (RAL 9003) finish; can be adapted for corner, parapet,or pole application
WMVE-SW Wall mount, 1.5 in. NPT, white (RAL 9003) finish
IWM-MKIT Marine kit is designed to protect the Spectra Series dome systemmounted to the IWM arm from galvanic corrosion.
IWM24-SW Wall mount, with integral 24 VAC, 100 VA transformer; white (RAL 9003)finish; can be adapted for corner, parapet or pole application
PP350-SW/PP351-SW Parapet wall/roof mount, white (RAL 9003) finish
IDM4018-SW Mount arm feed-thru, white (RAL 9003) finish
Wind Specifications Item Specification
Full Motion Control 0 to 43 knots (50 mph/81 kmh)
Optional Accessories Part Number Accessory
POE190-BT 90W IEEE802.3bt Type 4 GbE 4-Pairs single port midspan indoor injector
ECPS-48VDC-5A 48 VDC indoor power supply
