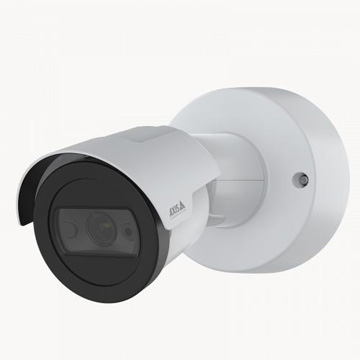

AXIS M2035-LE 網(wǎng)絡紅外筒機攝像機
型號Model:M2035-LE (M2025-LE 停產(chǎn))
鏡頭lens:
Fixed iris, fixed focus, IR corrected
AXIS M2035-LE:
3.2 mm, F1.4
Horizontal field of view: 101°
Vertical field of view: 54°
Minimum focus distance: 1.2 m
AXIS M2035-LE 8mm:
7.5 mm, F1.6
Horizontal field of view: 39°
Vertical field of view: 22°
Minimum focus distance: 3 m
詳情
AXIS M2035-LE 網(wǎng)絡紅外筒機攝像機
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M2035-LE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02131-001
AXIS M2035-LE 8 mm Black AR, AU, BR, CN, EU, JP, KR, UK, US 02133-001
AXIS M2035-LE 8 mm AR, AU, BR, CN, EU, JP, KR, UK, US 02132-001
AXIS M2035-LE AR, AU, BR, CN, EU, JP, KR, UK, US 02124-001
Technical specifications
DATASHEET (PDF)
Models: AXIS M2035-LE 8 mm / AXIS M2035-LE / AXIS M2035-LE 8 mm Black / AXIS M2035-LE Black
Camera
Property description Property value
Lightfinder Lightfinder
Min illumination/ light sensitivity (Color) * 0.17 / 0.16 / 0.17 / 0.16 lux
Min illumination/ light sensitivity (B/W) 0 lux
Image sensor CMOS
Image sensor size 1/2.9
Wide dynamic range WDR
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 25/30
Electronic image stabilization –
Lens
Property description Property value
Focal length * 8 / 3.2 / 8 / 3.2 mm
Horizontal field of view * 39 / 101 / 39 / 101 °
Vertical field of view * 22 / 54 / 22 / 54 °
Optical zoom –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 3
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66, IP67
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) –
Power (average) –
