Brand：AXIS
Model：AXIS Q1656-DLE
Lens：Focal length 3.9-10mm

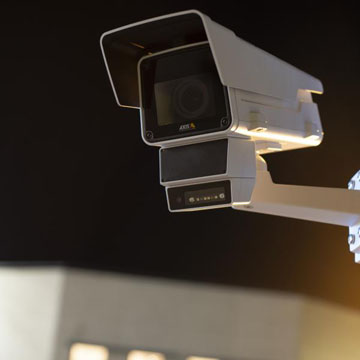

AXIS Q1656-DLE Radar-Video Fusion Camera
Next-level detection and visualization
Two powerful technologies in one device
Increased scene intelligence
Reliable detection 24/7
Built-in cybersecurity features
Premium Axis Q-line camera functionality
Technical specifications
Models: AXIS Q1656-DLE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 3.9 - 10 mm
Horizontal field of view 96-44 °
Vertical field of view 63-27 °
Lens mount CS
Replaceable lens –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 4
Wireless –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) 25.5 W
Power (average) 9.5 W
DC input voltage 10-28 V
