IWM Series, IWM24 Series, and IDM4018 Mount WALL MOUNT, SPECTRA®, DF5, DF8, AND SARIX? IE SERIES DOMES
Product Features
? For Use with Spectra®, DF5, DF8, and Sarix? IE Series Domes; Can Also Be Used with Other Pendant Domes Using 1.5-inch NPT Threaded Pipe for Mounting
? Constructed of Aluminum (IDM4018) and Cast Aluminum (IWM Series)
? Mounts Directly to Vertical Load-Bearing Surface for Wall Mount Applications
? Supports up to 75 lb (34 kg)
? Includes Cable Feedthrough Hole
? IWM24 Series Includes Integral 24 VAC, 100 VA Transformer for Use with Spectra and Sarix IE Series Domes
? Optional Parapet, Pole, and Corner Adapters are Available
The IWM Series, IWM24 Series, and IDM4018 mounts can be attached directly to any vertical load-bearing surface. All mounts are designed to support up to 75 pounds (34 kg). The IWM Series and IWM24 Series are constructed of cast aluminum and are available in black, gray, or light gray finish. The IDM4018 is constructed of aluminum and has a gray polyester powder coat finish. Optional parapet, pole, and corner adapters are available.

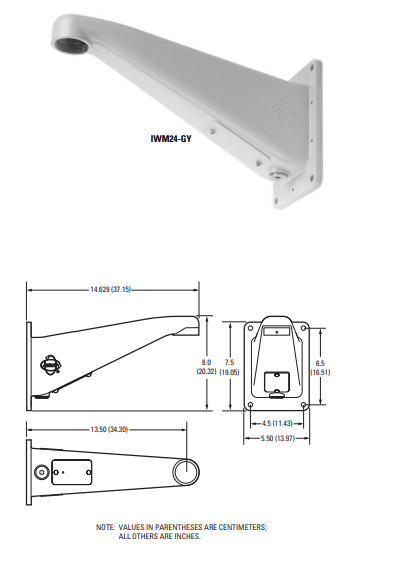

MODELS IWM-BK Wall mount with cable feedthrough for use with Spectra, DF5, and DF8 Series pendant domes; black finish. IWM-GY Same as IWM-BK except gray finish. IWM-SR Same as IWM-BK except light gray finish.* IWM24-BK Wall mount with cable feedthrough for use with Spectra, DF5, and DF8 Series pendant domes; includes integral 24 VAC, 100 VA transformer; black finish. IWM24-GY Same as IWM24-BK except gray finish. IWM24-SR Same as IWM24-BK except light gray finish.* IDM4018 Wall mount with removable front end cap and feedthrough capabilities for use with Spectra, DF5, and DF8 Series pendant domes.
GENERAL Suggested Mounting Method IWM/IWM24 Series Secure with four 3/8-inch fasteners (not supplied) suitable for the mounting surface IDM4018 Secure with four 5/16-inch fasteners (not supplied) suitable for the mounting surface Dome Mounting Dome screws directly into mount Cable Entry IWM Series and IDM4018 One cable feedthrough hole in mounting plate IWM24 Series Two cable feedthrough holes in mounting plate; can accommodate 1/2-inch (1.27 cm) conduit fittings or PG13.5 liquid-tight gland fittings; one 3/4-inch (1.91 cm) conduit opening on the bottom of mount arm for flexible metal conduit connectors Maximum Load 75 lb (34 kg) Effective Projected Area (EPA) IWM/IWM24 Series ~48 square inches IDM4018 ~54 square inches Construction IWM/IWM24 Series Cast aluminum IDM4018 5052H32 Aluminum Finish IWM-BK Black polyester powder coat IWM-GY Gray polyester powder coat IWM-SR Light gray polyester powder coat IWM24-BK Black polyester powder coat IWM24-GY Gray polyester powder coat IWM24-SR Light gray polyester powder coat IDM4018 Gray polyester powder coat Environment Indoor/outdoor Weight Unit Shipping IWM Series 2.46 lb (1.12 kg) 7 lb (3.17 kg) IWM24 Series 6.58 lb (2.98 kg) 11 lb (4.98 kg) IDM4018 4.00 lb (1.81 kg) 6 lb (2.71 kg)
