Model:HM035MP2
Focal length :3.5MM

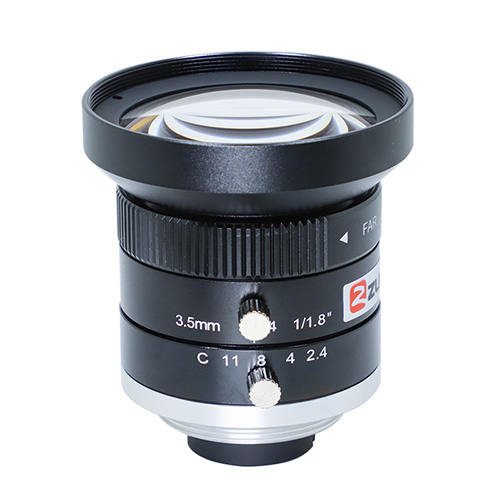

FA Lens HM035MP2 3.5mm Manual Iris Machine Vision Lens 1/1.8" F2.4 100lp/mm C-Mount
1/1.8″C-Mount f=3.5mm F2.4
Can suppress stray light
Low distortion,high contrast
Locking set screws for focus and Iris
Metal structure，compact appearance
Used in Industrial Camera,ITS Camera
|
2MP 3.5mm FA LensC Mount |
|||
|
Model |
HM035MP2 |
||
|
Image Size |
1/1.8-inch |
||
|
Focal length |
3.5mm |
||
|
F No. |
F2.4-C |
||
|
M.O.D(m) |
0.1-Inf. |
||
|
Operation |
Iris |
Manual |
|
|
Focus |
Manual |
||
|
Angle of View (D×H×V) |
1/1.8" |
104.5°×94.3°×78.0° |
|
|
1/2" |
99.6°×87.9°×71.1° |
||
|
1/3" |
84.2°×71.1°×55.6° |
||
|
Distortion |
-1.23% |
||
|
BFL |
8.57mm |
||
|
Mount |
C-Mount |
||
|
Object Dimension |
1/1.8" |
350.5mm×261.3mm(WD=150mm) |
|
|
1/2" |
312mm×230.5mm(WD=150mm) |
||
|
1/3" |
230.5mm×170mm(WD=150mm) |
||
|
Dimension |
Φ42×37.7mm |
||
|
Weight |
130g |
||
|
Horizontal Resolution |
100lp/mm |
||
|
Filter Thread |
M40.5*0.5 |
||
|
Working Temperature |
-20oC～+70oC |
||
