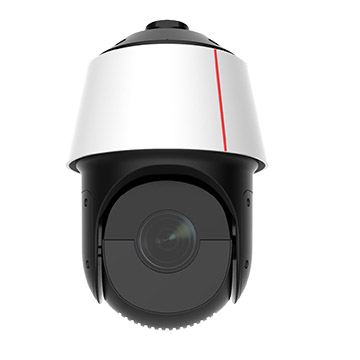

C6620-Z23-Sf Huawei 2MP Starlight IR PTZ Dome Camera
Supports heat map
1/2.7" CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast.
CPU Hi3516A V100
Memory DDR3 0.2500 GB
Flash type SPI NAND Flash 128.0 MB
Max resolution 2MP 1920(H)*1080(V)
Sensor size 1/2.7"
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 5–115 mm
Angle of view Horizontal: 2.8° (T) to 56.9° (W); vertical: 1.6 (T) to 32.1° (W)
IR range 150 m
Video encoding format MJPEG/H.264/H.265
PTZ rotation angle Pan: 0° to 360° Tilt: –15° to +90°
Pan speed Manual: 0.1–160°/s; preset position: 240°/s
Tilt speed Manual: 0.1–120°/s; preset position: 200°/s
Heat map Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 24 V AC and PoE (IEEE 802.3at)
Power consumption Maximum: 23 W; typical: 9.5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
