Brand：Bosch
Model：NBN-932V-IP

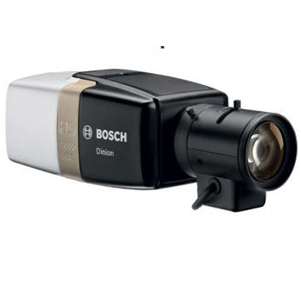

Bosch NBN-932V-IP Fixed HD Cameras DinionHD 1080p HDR
High dynamic range, and at the same time presents the bright area and dark area in detail
Intelligent scene content analysis effect of image processing can be optimized
Smart noise reduces the bandwidth and storage requirements
24 VAC power plus or minus 10% Hz12 50/60 VDC Ethernet plus or minus 10% rated 48 VDC power supply
Current consumption of 500 mA (12 VDC) 450 175 mA mA (24 VAC) 48 VDC (PoE)
Power consumption 6.0 W (12 VDC) 6.0 VA (24 VAC) 8.4 W (PoE 48 VDC)
The sensor
Type a third of an inch CMOS HD
Effective image 1920 x 1080 pixels
video
H. 264 video compression (ISO/IEC 14496-10);M - JPEG, JPEG
Data flow four configurable h. 264 and M - JPEG data streams, frame rate and bandwidth can be configured.
Level of resolution (vertical) x
- 1080 p HD 1920 x 1080
- 720 p HD 1280 x 720
- 480 - p SD code: 704 x 480;Display: 854 x 480
- 432 - p SD 768 x 432
- 288 - p SD 512 x 288
- 240 - p SD code: 352 x 240;Display: 432 x 240
- 144 - p SD 256 x 144
Overall IP delay at least 120 milliseconds, up to 240 milliseconds
GOP structure IP, IBP, IBBP
Reflectivity of 89% sensitivity (3200 K, scene, pro series)
Minimum illumination (30 IRE ()
Color lx (fc) 0.025 0.25
Black and white lx (fc) 0.008 0.08
Color, black and white, automatic day/night
White balance atw (2500-10000 k), automatic white balance to maintain indoor and outdoor automatic tracking and manual white balance
Shutter automatic electronic shutter (AES) fixed [1/25] (1/30 to 1/30) optional default shutter
Closed/auto/smart backlight compensation
Wide dynamic range on/off
Noise reduction of intelligent dynamic noise reduction (iDNR), with the function of time and space independent adjustment
Contrast enhancement on/off
Definition can select level of resolution enhancement
90 dB dynamic range
Privacy cover four separate areas, fully programmable
Video mobile intelligent video analysis
audio
Standard AACG. 711, 8 kHz sampling rate L16, 16 kHz sampling rate
SNR > 50 dB
Audio stream full duplex/half duplex
Mono audio 1 road line input, 1 road mono line output
The connector is 3.5 mm stereo jack
Signal line input 12000 euro (typical), 1 Vrms (maximum)
Output signal line 1 Vrms @ 1500 euro (typical),
Alarm 2 road input
Activating voltage + 5 VDC and + 40 VDC (22000 + 3.3 VDC, the DC coupling pull-up resistor)
Relay output 1 road
Voltage VAC 30 or 40 + VDC maximum continuous current of 0.5 A, power 10 va
The memory card slot support SDHC and SDXC microSD card
Continuous recording video, video loop.Video alarm/event/schedule
Device configuration through a Web browser or configuration manager
Software update flash ROM, it can be remote programming
Protocol IPv4 and IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2 / V3, ICMP, RTSP, FTP, Telnet, ARP, and DHCP, SNTP, SNMP (V1, MIB ? II), 802.1 x, SMTP, iSCSI, UPnP (SSDP)
Encryption, SSL, TLS 1.0 AES (optional)
Base-t Ethernet STP, 10/100, adaptive, half duplex/full duplex, RJ45
PoE power supply meets the IEEE 802.3 at standard
Connect the ONVIF Profile SAuto - MDIX
Size (78 x 66 x width x length) x140 mm (3.07 x 3.07 x 2.6 inches), excluding the lens
Weight 690 grams (1.52 pounds), excluding the lens
RAL color 9007 titanium
1/4 inch tripod base bottom and top 20 UNC
Operating temperature - 20 ° C to + 50 ° C (4 ° F to 122 ° F)
Storage - 30 ° C to + 70 ° C temperature (22 ° F to 158 ° F) + -
Operating humidity from 20% to 93% relative humidity
Store humidity up to 98% relative humidity
