Brand:AXIS
Model:AXIS Q1785-LE 01161-001
Lens Focal length 4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60 - 2.3 °
Vertical field of view 39-1.3 °

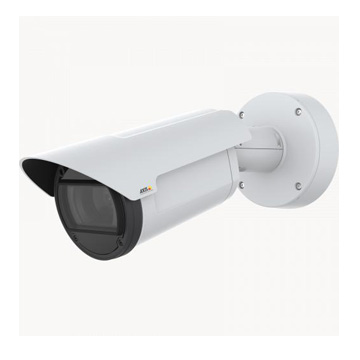

AXIS Q1785-LE Network Camera
Robust, first-class 2 MP video with 32x optical zoom
HDTV 1080p at up to 60 fps
-40 °C to 60 °C operating temperature
OptimizedIR with up to 80 m (262 ft) range
Electronic image stabilization
AXIS Guard Suite included
Housings & cabinets
AXIS Q17 Front Window Kit B
AXIS T98A17-VE Surveillance Cabinet
AXIS TQ1806-E Weathershield
Mounts
AXIS T91B47 Pole Mount
AXIS T94G01P Conduit Back Box
AXIS T94P01B Corner Bracket
AXIS T94R01B Corner Bracket
AXIS T94S01P Conduit Back Box
AXIS T94V01C Dual Camera Mount
AXIS Q1785-LE AR, AU, BR, CN, EU, JP, KR, UK, US 01161-001
AXIS Q1785-LE IN 01161-113
Technical specifications
Models: AXIS Q1785-LE
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization Yes
Lens Focal length 4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60 - 2.3 °
Vertical field of view 39-1.3 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot –
General
Remote focus –
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Sustainability PVC free
Power
Power (max) 13.5 W
Power (average) 7.8 W
